KW-16-ZB100A7
KW-16-ZB200A7
KW-16-ZB300A7
KW-16-ZB400A7
| > Life expectancy：Mechanical≥100 million cycles |
> Features： -Tight configuaration, small contact gap, snap action |
> Application： Microwave | Dish washer | Water purifier Washer | |

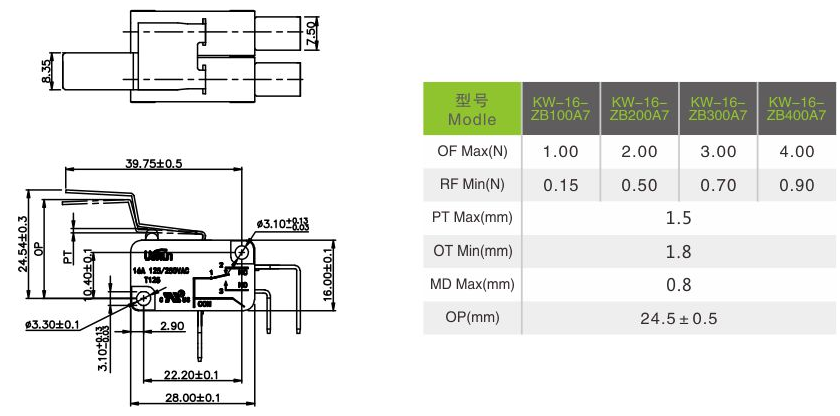

KW-16 series micro-switch technical parameters：
1. Insulation resistance≥100MΩ（500VDC）
2. Contact resistance：≤50mΩ（Lnitial value）
3. Test voltage：
Between terminals of the same polarity：
AC1000V,50/60Hz,1min
Between current-carrying metal parts and ground(case),
and between each terminal and non-current-carrying
metal parts：AC2000V,50/60Hz,1min
4. Life expectancy：Mechanical≥100 million cycles
Note：Leverage and strip shape can be customized
according to customer requirements
