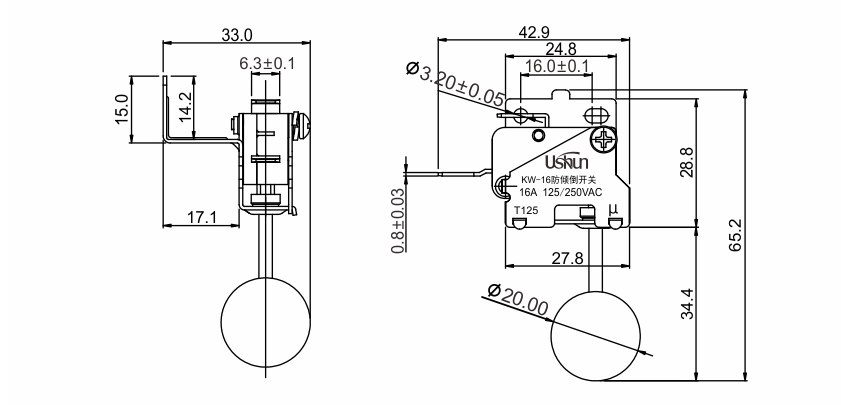

KW-16-BC35A
| > Life expectancy：Mechanical≥100 million cycles |
> Features： -Tight configuaration, small contact gap, snap action |
> Application： Apply to Electric warmer | Electrical air cleaner fan home appliances electron equipment |
Fall-Protective switch series technical parameters：
1. Insulation resistance: ≥100MΩ（500VDC）
2. Contact resistance：
Lnitial value：≤50mΩ
Gold-plated contacts：≤10mΩ
3. Test voltage：
Between terminals of the same polarity：
AC1000V,50/60Hz,1min
Between current-carrying metal parts and ground(case),
and between each terminal and non-current-carrying
metal parts：AC1500V,50/60Hz,1min
4. Life expectancy：
Mechanical≥100 million cycles
Electrical≥10000 cycles
