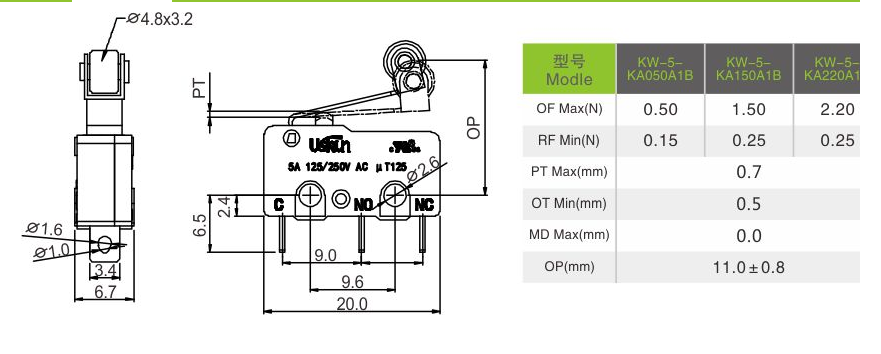

KW-5-KA050A1B
KW-5-KA150A1B
KW-5-KA220A1B
| > Life expectancy：Mechanical≥100 million cycles |
> Features： -Safe reliable miniature switch. -characteristic:small contact gap,quick action, -high sensitivity and small operating travel. |
> Application： Telephone | computer | humidifier |
KW-5 series micro-switch technical parameters：
1. Insulation resistance：≥100MΩ（500VDC）
2. Contact resistance：≤100mΩ
3. Test voltage：
Between terminals of the same polarity：
AC1000V,50/60Hz,1min
Between current-carrying metal parts and ground(case),
and between each terminal and non-current-carrying
metal parts：AC1500V,50/60Hz,1min
4. Life expectancy：Mechanical≥100 million cycles
Note：Leverage and strip shape can be customized
according to customer requirements
